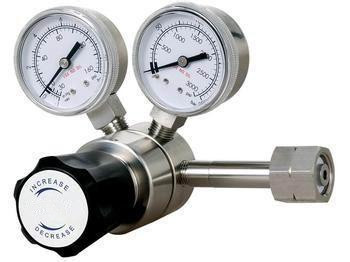

進口高壓氣體減壓閥
一、進口高壓氣體減壓閥 產品概述
品牌：美國歐可OKE
進口高壓氣體減壓閥，High pressure gas reducing valve，也叫高壓氣體調壓閥，是一種自動降低管路工作壓力的專門裝置，活塞式高壓氣體減壓閥是采用控制閥體內的啟閉件的開度來調節介質的流量，將介質的壓力降低，同時借助閥后壓力的作用調節啟閉件的開度，使閥后壓力保持在一定范圍內，適用于各種高壓的氣體管道，壓力最高可以達到16Mpa或者25Mpa。活塞式高壓氣體減壓閥的特點是在進口壓力不斷變化的情況下，保持出口壓力值在一定的范圍內。在應用活塞式高壓氣體減壓閥時，必須遵循其適用規范的要求，以確保經營正常進行。高壓氣體減壓閥主要用于氣體管路，如空氣、氬氣、氬氣、氬氣、液化氣、天然氣等氣體介質。
二、進口高壓氣體減壓閥 技術參數及性能
閥體形式 直通鍛造閥體
公稱通徑 DN15～300mm
法蘭標準 ANSI、JIS、DIN、GB、JB (特殊可按用戶提供)
連接形式 法蘭(FF RF RTJ)、焊接(BW SW)
公稱壓力(MPa) 11.0 15.0 26.0 42.0
殼體試驗壓力(Mpa) 16.5 22.5 39.0 63.0
密封試驗壓力(Mpa) 12.1 16.5 28.6 46.2
最高進口壓力(Mpa) <11.0 <15.0 <26.0 <42.0
滲透量 X/F(橡膠/聚四氟乙稀)：O滲漏Y(硬密封)：按GB12245-1989
三、進口高壓氣體減壓閥 零件材料
底蓋 碳鋼 不銹鋼
閥體 碳鋼 不銹鋼
彈簧 65Mn
閥瓣 2Cr13/304 304
閥座/閥桿 2Cr13/304 304
導向套 2Cr13/304 304
活塞 304/銅合金
閥蓋 碳鋼 不銹鋼
導閥 不銹鋼/銅
接頭 25 304
四、進口氣體法蘭減壓閥業績
英荷皇家殼牌石油公司，西門子股份公司，廣東華南特種氣體研究所有限公司，通用電氣公司，北京桑翌實驗儀器研究所杭州同益氣體研究所,哈爾濱工業大學，江蘇天瑞儀器股份有限公司，長沙開元儀器股份有限公司，比亞迪股份有限公司，美國德州儀器，瓦萊羅能源公司，惠州市方舟工業氣體有限公司，江蘇通廣石化工業氣體有限責任公司，杭州三泰工業氣體設備有限公司
Imported high pressure gas pressure reducing valve
I. Imported high pressure gas pressure reducing valve Product overview
Brand: US Ouke OKE
The imported high pressure gas reducing valve, also called high pressure gas pressure regulating valve, is a special device for automatically reducing the working pressure of the pipeline. The piston type high pressure gas pressure reducing valve adopts the opening and closing member in the control valve body. The opening degree is used to adjust the flow rate of the medium, and the pressure of the medium is lowered. At the same time, the opening degree of the opening and closing member is adjusted by the action of the post-valve pressure, so that the post-valve pressure is maintained within a certain range, and is suitable for various high-pressure gas pipelines, pressure Up to 16Mpa or 25Mpa. The piston type high pressure gas pressure reducing valve is characterized by keeping the outlet pressure value within a certain range under the condition that the inlet pressure is constantly changing. When applying a piston high pressure gas pressure reducing valve, it must comply with the requirements of its applicable specifications to ensure normal operation. The high pressure gas pressure reducing valve is mainly used for gas pipelines such as air, argon, argon, argon, liquefied gas, natural gas and the like.
Second, imported high pressure gas pressure reducing valve Technical parameters and performance
Body form straight through forged valve body
Nominal diameter DN15～300mm
Flange standard ANSI, JIS, DIN, GB, JB (specially available by user)
Connection form Flange (FF RF RTJ), welding (BW SW)
Nominal pressure (MPa) 11.0 15.0 26.0 42.0
Shell test pressure (Mpa) 16.5 22.5 39.0 63.0
Seal test pressure (Mpa) 12.1 16.5 28.6 46.2
Maximum import pressure (Mpa) <11.0 <15.0 <26.0 <42.0
Permeation amount X/F (rubber/polytetrafluoroethylene): O leakage Y (hard seal): according to GB12245-1989
Third, imported high pressure gas pressure reducing valve parts and materials
Bottom cover carbon steel stainless steel
Body carbon steel
Spring 65Mn
Disc 2Cr13/304 304
Seat / Stem 2Cr13/304 304
Guide sleeve 2Cr13/304 304
Piston 304/copper alloy
Bonnet carbon steel stainless steel
Pilot valve stainless steel / copper
Connector 25 304
Fourth, the performance of imported gas flange pressure reducing valve
Royal Dutch Shell Oil Company, Siemens AG, Guangdong Huanan Special Gas Research Institute Co., Ltd., General Electric Company, Beijing Sangqi Experimental Instrument Research Institute Hangzhou Tongyi Gas Research Institute, Harbin Institute of Technology, Jiangsu Tianrui Instrument Co., Ltd. Changsha Kaiyuan Instrument Co., Ltd., BYD Co., Ltd., Texas Instruments, Valero Energy, Huizhou Fangzhou Industrial Gas Co., Ltd., Jiangsu Tongguang Petrochemical Industrial Gas Co., Ltd., Hangzhou Santai Industrial Gas Equipment Co., Ltd.
|
